Need a suspension upgrade for your Ford Transit RWD? The Van Compass 2015-2017 Ford Transit RWD - Stage 2 Topo 2.0 System (Single or Dual Rear Wheel) is the perfect solution for drivers looking to improve ride quality, handling, and versatility. Designed for heavier vans experiencing rear sag and for users who want the ability to fine-tune their ride, this system delivers a true 2-inch lift, greater ground clearance, and exceptional control across a variety of terrains.

The Stage 2 Topo 2.0 package includes a precision-engineered 0.75" lift camber correction plate paired with tuned coil springs, adding 1.25" of lift in the front and increasing compression travel for better handling and comfort. Rear lift is achieved through 2" billet aluminum blocks and corresponding bump stop spacers to maintain proper rear suspension geometry. Rear shock relocation brackets are included, allowing the trimming of low-hanging factory mounts for improved ground clearance under the axle tube.

The standout feature of this system is the VC-tuned Falcon 3.3 Adjustable Rear Shocks, equipped with 10 intuitive firmness settings controlled by an easy-to-access Fast Adjust knob. This wide adjustment range lets you quickly switch between soft, compliant settings for rough trails and firmer settings for stable, controlled highway driving, offering maximum adaptability for all driving conditions. Additionally, the system includes Bilstein B6 front struts, enhancing front-end damping and further improving handling and ride stability.

NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Key Features: Van Compass 2015-2017 Ford Transit RWD - Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

• Fits 2015-2017 Ford Transit RWD vans only
• Aggressive, 2" taller stance allows larger tires to smooth out terrain
• Increased approach, break over and departure angles
• VC tuned Falcon 3.3 Adjustable rear shocks with 10 intuitive firmness settings

• Enhanced cornering stability and reduced wind sway
• More effective control over large and small bumps

• Improved handling feel on rough roads and broken pavement
• Increased bottom out resistance

What's Included?

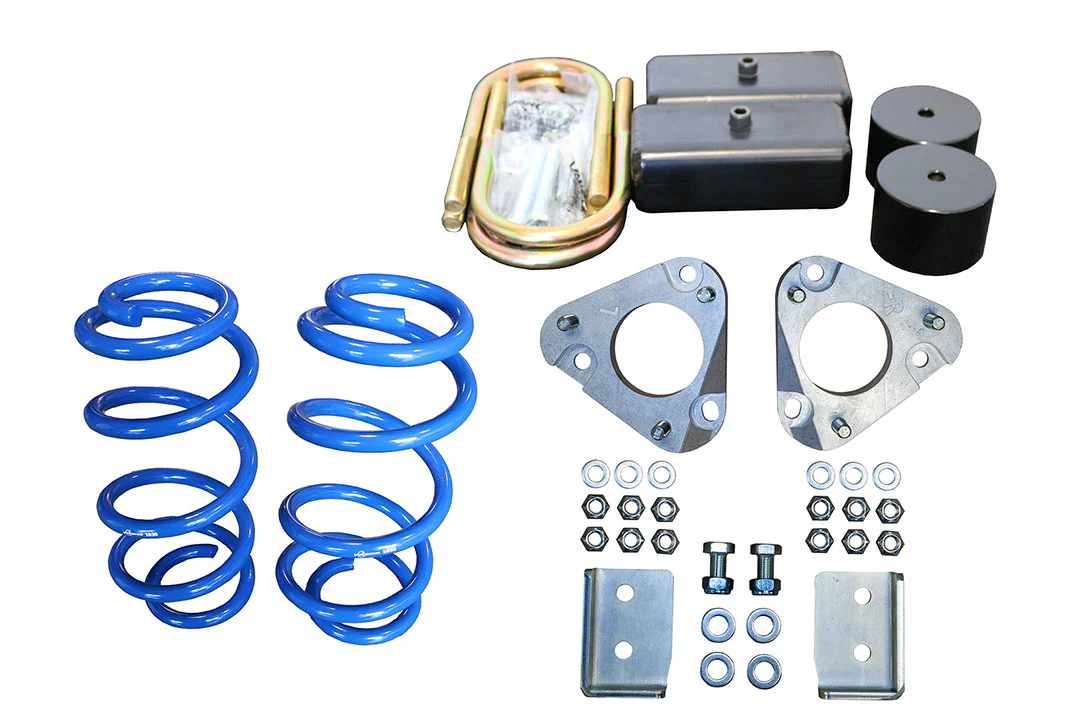

• Topo 2.0 Front and Rear Lift Kit

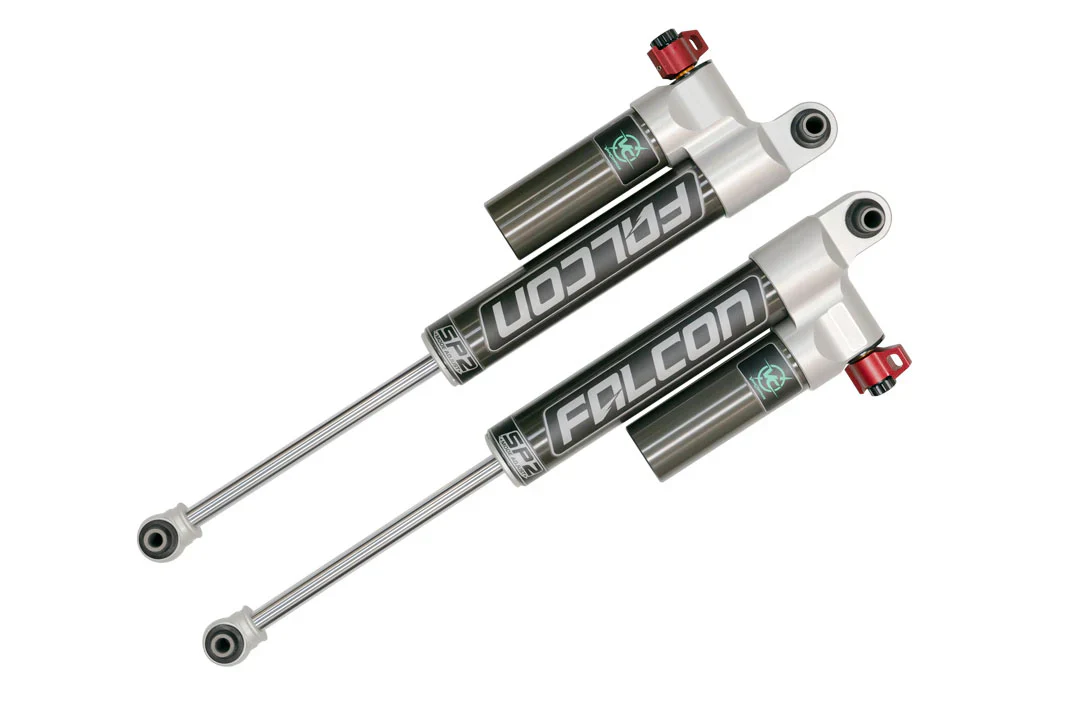

• Tuned Falcon 3.3 SP2 Adjustable Rear Reservoir Shocks (1 pair)
• High Clearance Rear Shock Brackets

Fitment Guide

MODEL: TRANSIT

YEAR: 2015-2017

DRIVE TYPE: RWD

>>COMPLETE WHEEL AND TIRE FITMENT GUIDE<<

>>DON'T KNOW YOUR VANS WEIGHT? USE THE CAT SCALE LOCATOR<<

NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.

Documents: Van Compass 2015-2017 Ford Transit RWD - Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)

2013+ Transit Topo Front Kit Installation Instructions

2013+ Transit Topo Rear Kit Installation Instructions

2013+ Transit Rear Falcon 3.3 Installation Instructions

2013+ Transit High Clearance Shock Brackets Installation Instructions

Falcon 3.3 Shock Settings Guide

Video: Van Compass 2015-2017 Ford Transit RWD - Stage 2 Topo 2.0 System (Single or Dual Rear Wheel)
