Wiring large DC loads into your EcoFlow Power Kit-based RV electrical system? Check out the EcoFlow LFP Battery Power Distribution Terminal – the solution for efficient and reliable DC power distribution in a compact and eco-friendly package.

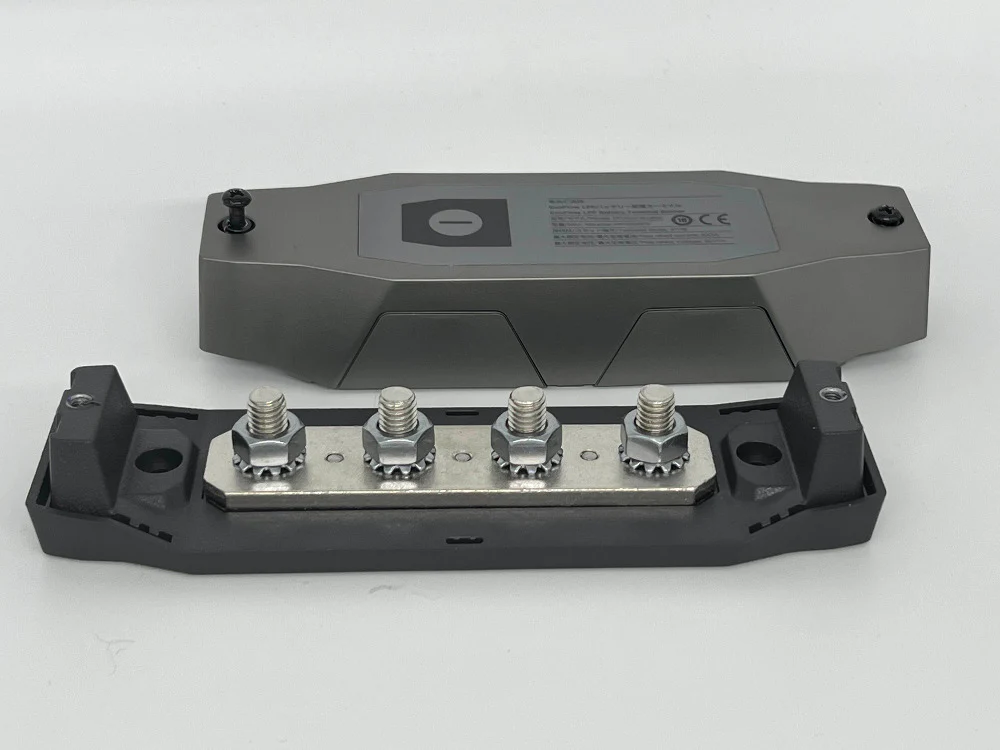

These 300A DC bus bars (sold as a set of two, one for positive and one for negative connections) give you a way to wire large DC loads into your EcoFlow Power Kit. EcoFlow recommends using these for loads like 12V and 24V DC air conditioners, combined with the AC/DC Distribution Panel.

FREE SHIPPING on this item anywhere in the lower 48 US states.

Specifications: EcoFlow LFP Battery Power Distribution Terminal

Brand	EcoFlow
Type	Power Distribution Terminal / Bus Bar (set of 2)
Max. current rating	300A
Max. voltage rating	60 VDC
Terminal diameter	0.31 inch
Terminal height	0.59 inch
Terminal material	Stainless steel
Hex nut material	Stainless steel
Recommended torque	150.5-203.6lbf·inch / 17-23N·m
Busbar strip material	Tin-plated copper
Base material	PC+ABS, black, YS 1293B，UL 94 V-0
Cover material	PC+ABS, YS 1286B, UL 94 V-2
Weight	0.59 lb
Dimensions (h*w*d) (with cover)	6.57 x 2.05 x 1.36 inch
Warranty	1-year

Documents: EcoFlow LFP Battery Power Distribution Terminal

EcoFlow LFP Battery Power Distribution Terminal Quick Installation Guide

Video: EcoFlow LFP Battery Power Distribution Terminal

The modular EcoFlow Power Kits are plug-and-play power systems, enabling you to quickly put together very capable electrical systems for your camper van or RV. Even after you assemble a system, you can add a battery to increase power storage capacity or plug in a solar panel for faster charging. Power Kits include the patented Power Hub that combines five components (inverter, dual MPPT solar charge controllers, DC/DC charger, DC/DC converter) to meet all your power needs, saving you space, money, and set-up hassle.

<
