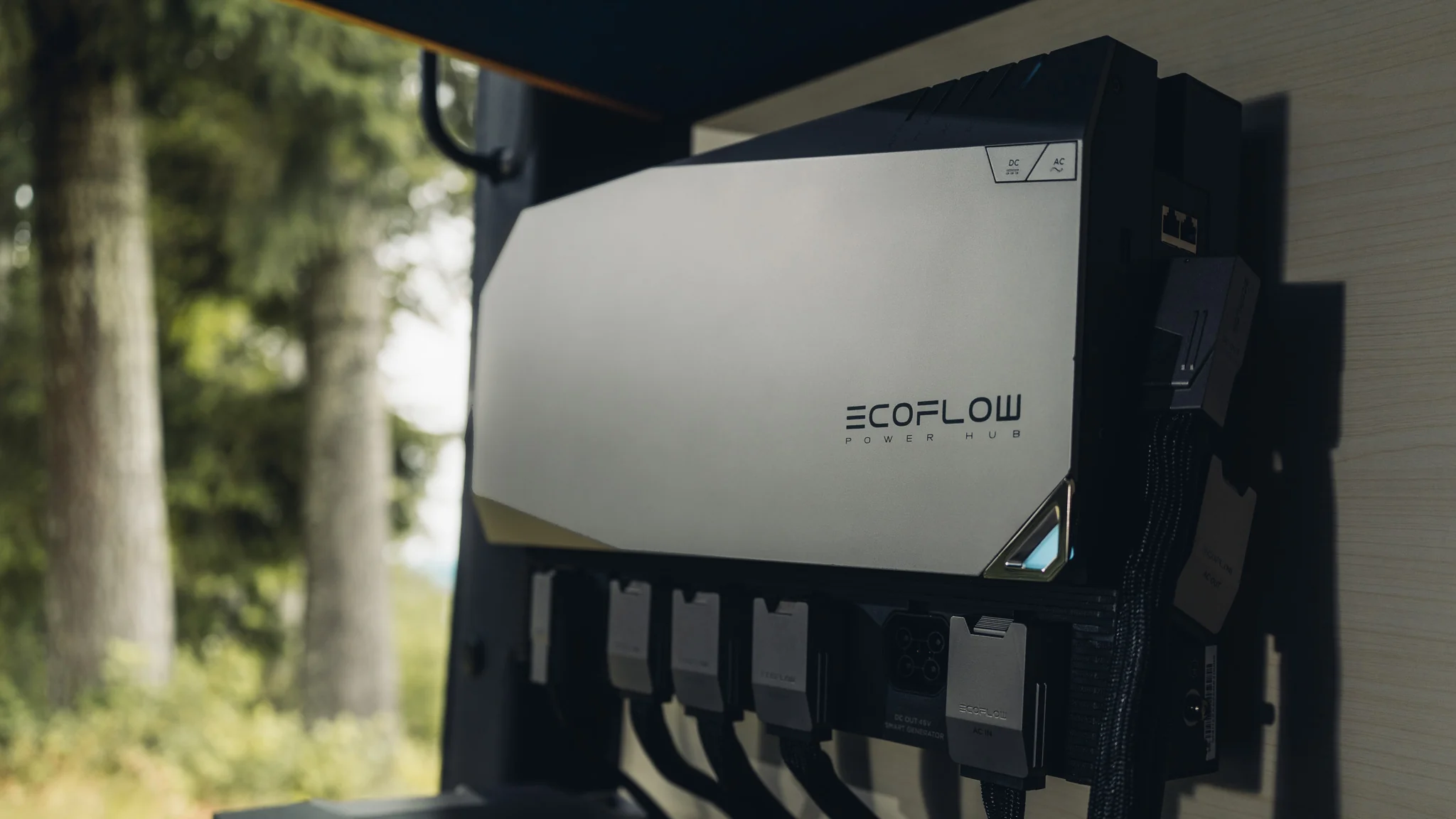

5 kVA Power Hub - Gen 2

Dimensions (in)	480x140x300mm(18.9x5.5x11.8in)
Testing & Certifications	CE, UL, FCC
Wi-Fi	2.4G, 5G Supported
Bluetooth	5.0 Supported
OUTPUT
AC Output (Discharge only)	120V - 4000W, 5000VA, 60Hz (Surge 10 kVA, 100ms)
AC Output (Bypass Mode)	Low Voltage: 100-120V ~ 50A Max, 50/60Hz High Voltage: 220-240V ~ 50A Max, 50/60Hz
DC Main Output	13.6V - 100A, 1300W Max 26.4V - 60A, 1600W Max
INPUT
X-Fusion(Power Assist)	50A, 5000VA Max
AC Main Input Voltage/frequency	100-120V, 50Hz/60Hz
Solar Charging Input	Port 1: 13-60V 100A, 4000W max Port 2/3: 13-60V 30A, 1600W max
Alternator Charging Input	13V-60V, 60A/30A/30A, up to 4800W total
TEMPERATURE
Best Operating Temperature	68°F-86°F(20°C - 30°C)
Discharge Temperature	-13°F-140°F(-25°C to 60°C)
Charge Temperature	-13°F-140°F(-25°C to 60°C)
Storage Temperature	-13°F-140°F(-25°C to 60°C)
Net Weight	34 lbs(15.5kg)

30/50Amp AC/DC Smart Distribution Panel - Gen 2

Feed-In type	Split phase (L1, L2, N)
AC Input	50A Max. 120V/240V, 60Hz
AC Output	Max 30A for each branch circuit
AC Circuits	Max 12 branch circuits
Maximum Input Short-Circuit Current	10kA
DC Input	Max 100A, 13/26V
DC Output	Max 30A for F1-F13 Circuits Max 50A for F14-F16
Number of Circuits	16 controllable circuits(F1-F16)
Operating Temperature (C)	–25°C to 45°C (–13°F to 113°F)
Operating Temperature (F)	–25°C to 70°C (–13°F to 158°F)
Dimensions	390x135x270 mm (15.3x5.3x10.6 in.)
Net Weight (lbs)	4 kg (8.8 lb)
Altitude	9842 ft (3,000 m)
Enclosure Type	NEMA Type 1

Power Insight (10-in.) - Gen 2

Dimensions(WxHxD)	244.4 x 158.6 x 12.6mm(9.6W x 6.2H x 0.5D)
Weight	620g(1.4lbs)
Input Rating(USB-C)	5V DC, 2A
Operating Temperature	-10℃ to 45℃(14°F to 113°F)
Storage Temperature	-15℃ to 50℃(5°F to 122°F)
Altitude	3000m(9842ft)approximately
Communications	WLAN and Bluetooth
IP Rating	IP42
Bluetooth	Frequency Range: 2402-2480 MHz Max output power: <10 dBm
Wi-Fi	Frequency Range: 2412-2472 Mhz, 5180-5320 MHz, 5500-5700 MHz; Max Power: <20 dBm Frequency Range: 5745-5825 MHz; Max Power: >13.98 dBm
Tests and Certifications	UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

5kWh LFP Battery

Capacity	5120Wh (51.2V, 100Ah)
Cell Chemistry	Lithium Iron Phosphate
Cycle Life	~3500 Cycles up to 80% Capacity
Protection Level	IP54
Test and Certifications	UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Storage Temperature (F)	-4°F–140°F
Storage Temperature (C)	-20°C–60°C
Operating Temperature (F)	-4°F-122°F
Operating Temperature (C)	-20℃-60℃

Power Kit Console (7-in.) - Gen 1

Touch Screen (Diagonal Measurement)	7 Inch (6x3.4in) (Width x Height)
Power Supply Voltage	12 VDC
Operating Temperature (C)	-20℃-60℃
Operating Temperature (F)	-4°F-140°F
Tests and Certifications	UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC

Installation Notes: EcoFlow 5kVA Power Hub AC Charge Cable (4.5m)

Note: The 5kVA Power Hub comes with AC and DC Main Out cables designed to connect to the new EcoFlow 50A Distribution Panel. The 50A Distribution Panel does not come with circuit breakers or extra DC fuses. 3x DC Main fuses are included. If installing 5kVA Power Kit with 5kVA AC Charge cable to a 30A Panel, you will also need to source ring terminals separately to complete that connection(none included.) Please see the User Manual for common/appropriate breakers.

The EcoFlow 5kVA AC Charge Cable (4.5m) received in a Power Kit or individual purchase may or may not have a pre-installed magnetic ring with some extended ground wire length wrapped 4-5x in a coil. This is recommended by EcoFlow for anti-interference purposes. Some cables will not have the coil pre-installed and included separately in the packaging. If you do receive it coiled and need to run the cable through conduit, it is okay to remove and then rewind as originally received. Below is a video link showing how to properly wind the ground wire around the ring.

Ground Wire Coil Wrap Demonstration Video

Example image of what the ground wire looks like pre-coiled:
